Xpress II platform stair lift requires little or no structural modification.

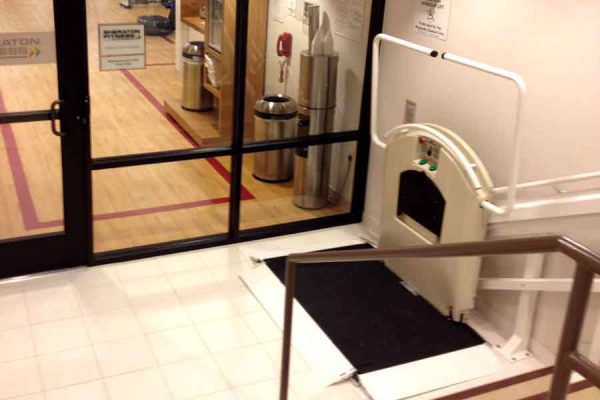

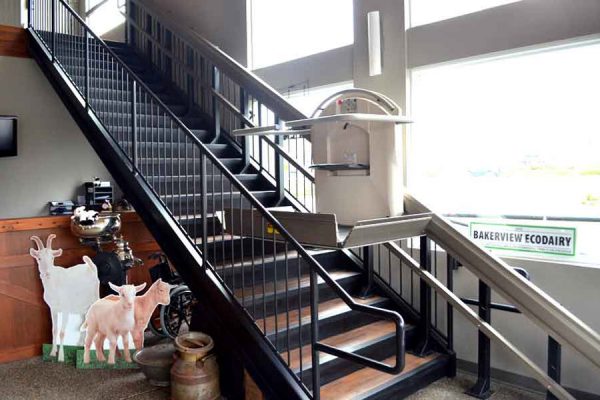

The Garaventa Lift Xpress II inclined platform wheelchair lift is designed to provide economical access between two landings. The platform travels on two rails which are secured directly to the wall or to support towers, and is propelled by means of a carriage mounted rack and pinion drive system. When the platform is not in use it is folded, taking up minimal space on the stairway.

The Xpress II is cost-effective and is ADA compliant. With a variety of standard and optional features available, it can be designed to suit the needs of the user and building owner.

Highlighted below are some of the many standard features available. For more extensive information, consult the Xpress II Design & Planning Guide or contact your local Garaventa Lift Representative.

250kg (550 lbs)

Choice of Three Platform Sizes
800mm x 1250mm (31 1/2″ x 49 1/4″) – ADA Compliant
800mm x 1000mm (31 1/2″ x 39 3/8″)
750mm x 900 mm (29 1/2″ x 35 1/2″)

Drive System
The platform mounted drive system consists of a .75 H.P. motor, gearbox, pinion gear and flexible traveling cable.

Mains Power Operation
North America: 208 – 240VAC Single Phase on a dedicated 20 amp circuit
International: 208 – 240VAC Single Phase on a dedicated 16 amp circuit

Curved Safety Arms
Fully automatic safety arms are available to further increase the safety of the passenger.

Platform Controls
Constant Pressure Control Buttons – Large illuminated direction control buttons allow for independent operation of the lift.

Keyless Platform Operation

Emergency Stop Button – Used to stop the lift in an emergency.

Grabrail – Assists passenger with loading and unloading

Call Station Controls
The One Touch Control System – Unfolds platform and activates the ramps and optional curved safety arms.

Key Controlled Operation – This feature restricts operation to authorized users.

Keyed Call Stations – Restricts operation to authorized users (not allowed in certain jurisdictions)

Platform Sensors
Leading Ramp Sensor – When the platform is called to or from the landing area in the folded position the leading ramp is sensitive to obstructions.

Under Platform Sensing Plate – The under platform sensing plate detects obstacles underneath the platform.

Bi-directional Sensing – The ramps are designed to be obstruction sensitive in the direction of travel on the outside of the ramps as well as from within the platform. The internal ramp sensor prevents a wheelchair from being off-center on the platform deck.

Emergency Manual Lowering
This features allows the lift to be manually lowered during a power outage.

Hour Counter
Shows the amount of time the Xpress II has been used.

Champagne colored anodized aluminum rails and loading ramps, with non-aluminum components of the lift finished in a durable polyester powder paint coating in fine textured Moon Silver paint.
