It looks and feels like a small elevator but costs much less.

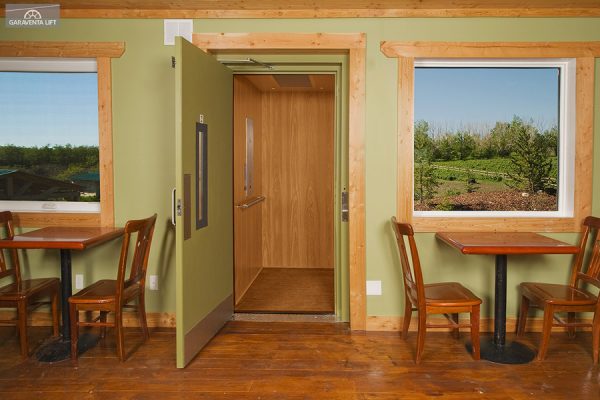

The Elvoron CPL is a vertical platform lift equipped with a full height cab and a non-load bearing ceiling. It looks and feels like a small elevator but costs much less. The Elvoron CPL is designed to provide access for people with disabilities in commercial buildings. Simple constant pressure operation and swing door access ensure reliability and ease of operation for passengers.

The Elvoron CPL Model is equipped with many standard features, setting it apart from the competition. Some of these features are listed below. For a complete list please contact Garaventa Lift or refer to the Elvoron CPL Design and Planning Guide .

– Available in 3 standard car sizes as well as custom sizes up to 21 square feet
– Standard Car Sizes

  • 36″ x 60″
  • 42″ x 60″
  • 48″ x 60″

– Available in 5 landing door configurations, including multiple door configurations
– Wide choice of laminate and melamine car wall panel colors
– Choice of three car and wall fixture colors
– 1:2 Cable Hydraulic Drive
– Quiet submersed pump and motor
– Two speed hydraulic valve for smooth start and stop
– Standard rated load of 750 lbs. – optional up to 1400lbs (635kg)
– Standard travel speed of 30 feet per minute.
– Travel range: USA (A18.1) : 14ft (4.2 meters). Canada (CSA B355) : 23 ft (7.0 meters). Other – – – heights : contact Garaventa Lift for more information.
– Make up to 6 stops or have a total of 6 landing doors
– Constant pressure button operation (floor selective)
– Illuminated buttons and digital floor display
– Automatic car lighting upon passenger entry
– Recessed ceiling lighting using low-voltage halogen fixtures
– Full length handrail located below the car operating panel (additional handrails can be added)
– Emergency backup power system for lights, locks and door operators
– Emergency stop and alarm
– Floor specific emergency battery lowering system
– Emergency manual lowering system
– Slack/broken cable safety brake device
– Hoistway door interlocks
– Solid car gate with safety switch
– UL or CSA certified components
