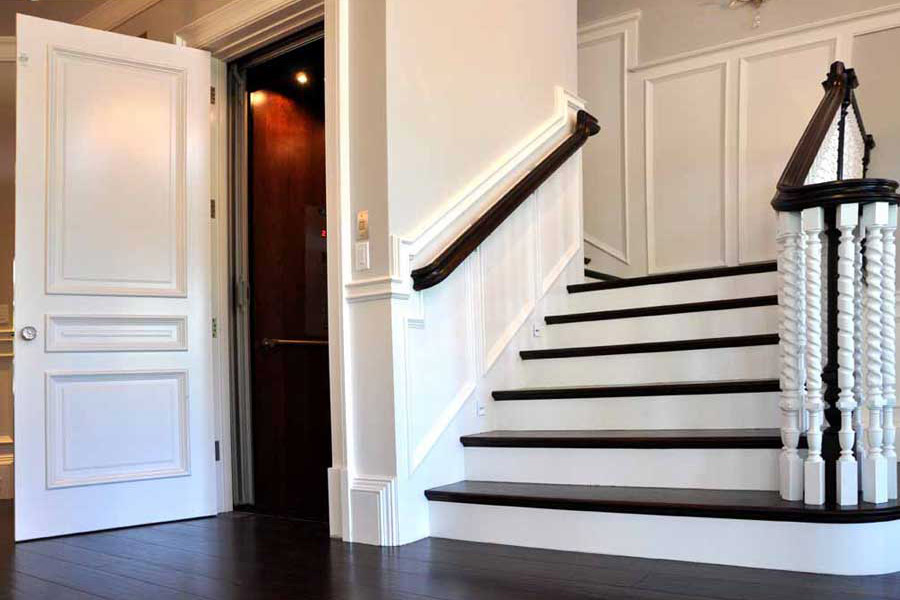

Image of Elvoron Stella on Bedco Mobility website
Other Elevator Solutions

The Elvoron Stella will add richness to any home.

The Elvoron Stella residential home elevator will add a richness to any home. The Stella features one-touch operation, automatic horizontal sliding style doors and offers an array of finishes to compliment any home decor.

The Stella Residential Elevator is equipped with many standard features, setting it apart from the competition.

– Available in 3 standard car sizes as well as custom sizes up to 18 square feet
– Standard Car Sizes

  • 48″ x 54″ (1220mm x 1372mm)
  • 40″ x 54″ (1016mm x 1372mm)
  • 42″ x 60″ (1067mm x 1524mm)
  • 51″ x 51″ (1295mm x 1295mm)

– Available in 5 car configurations, including multiple door configurations
– Wide choice of wood veneers and laminate car wall panel colors
– Choice of three car and wall fixture colors
– 1:2 Cable Hydraulic Drive
– Quiet submersed pump and motor
– Two speed hydraulic valve for smooth start and stop
– Standard Rated load: 1,000lbs (454kg) or 1,400lbs (635 kgs) available
– Travel speed: 40 feet per minute.
– Travel range: max 36 feet for 1,000lbs capacity and 30 feet for 1,400lbs capacity
– Make up to 6 stops or have a total of 6 landing doors
– Fully automatic push button operation much like a commercial elevator
– Illuminated buttons and digital floor display
– Automatic car lighting upon passenger entry
– Recessed ceiling lighting using low-voltage halogen fixtures
– Wood Veneer Drop Ceilings available
– Full length handrail located below the car operating panel (additional handrails can be added)
– Car operator with integral gate switch
– Car direction lantern comes with audio and visual signals
– Full height photo-electric door sensors
– Emergency backup power system for lights, locks and door operators
– Emergency alarm button
– Keyed emergency stop switch
– Floor specific emergency battery lowering system
– Emergency manual lowering system
UL or CSA certified components
