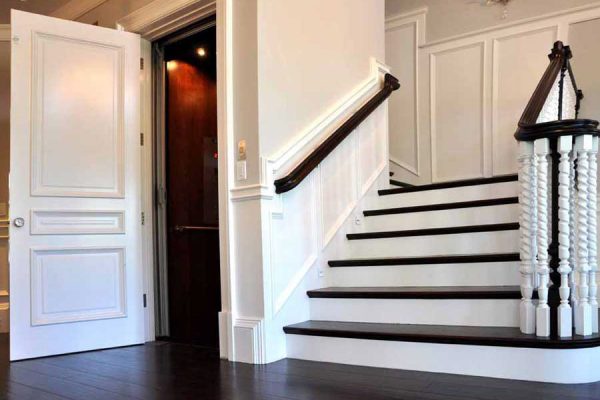

The Elvoron Home Elevator is designed specifically for use in private residences.

The hydraulic system offers premium ride quality, a sophisticated control system and quieter operation. A small area outside the elevator hoistway is required to accommodate the controller and the hydraulic pump unit. This area can be adjacent to the elevator hoistway or in a remote location.

– Available in 3 standard car sizes as well as custom sizes up to 21 square feet
– Standard Car Sizes

  • 36″ x 48″
  • 36″ x 54″
  • 36″ x 60″

– Available in 6 landing door configurations, including multiple door configurations
– Accordion car gate with safety switch in choice of clear or wood panels
– Wide choice of car wall panel colors and materials
– Choice of three car and wall fixture colors
– Choice of either a quiet 1:2 Cable Hydraulic Drive or a machine roomless 2 HP Geared Direct – Drive
– Smooth start and stop
– Standard rated load of 750 lbs.
– Nominal travel speed of 40 feet per minute. Travel range of up to 50 feet.
– Make up to 6 stops or have a total of 6 landing doors
– Fully automatic push button operation
– Illuminated buttons and digital floor display
– Automatic car lighting upon passenger entry
– Recessed ceiling lighting using low-voltage halogen fixtures
– Full length handrail located below the car operating panel
– Emergency backup power system for lights, locks and door operators
– Emergency stop and alarm
– Floor specific emergency battery lowering system
– Manual lowering capability
– Slack/broken cable safety brake device
– Hoistway door interlocks
– Solid car gate with safety switch
UL or CSA certified components
